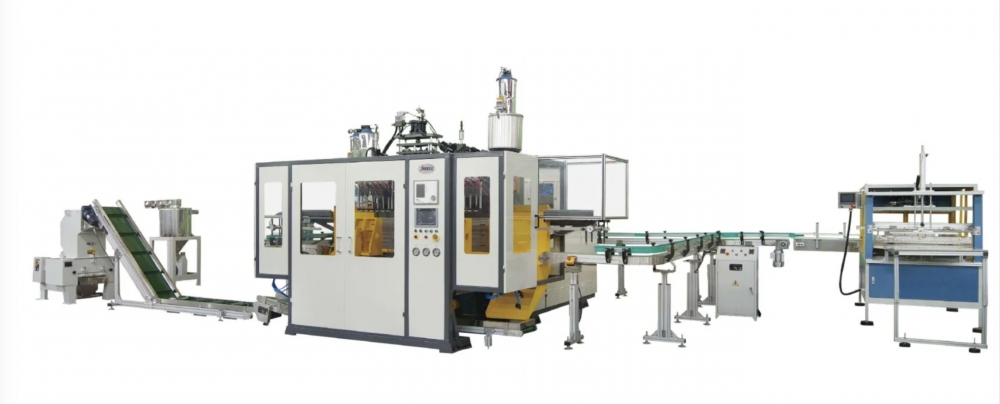

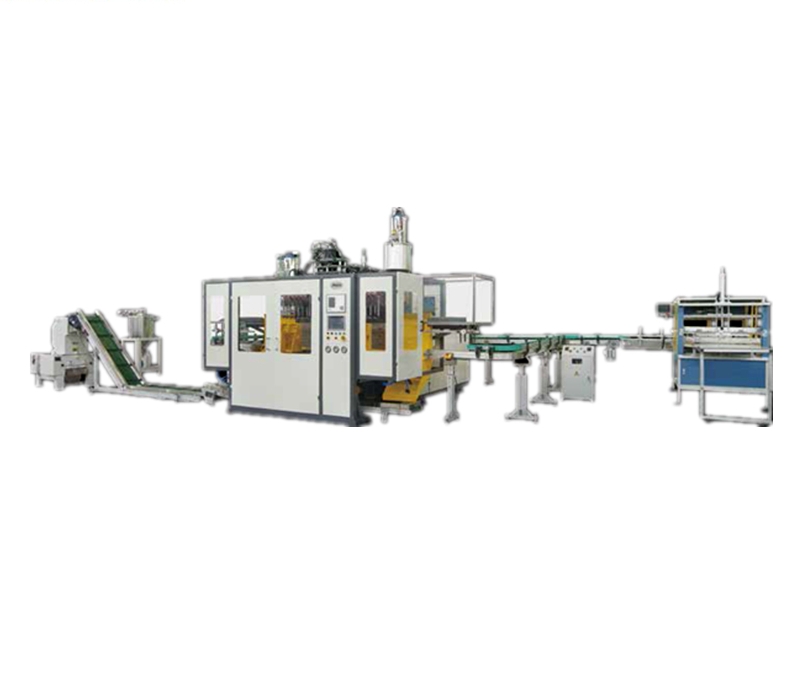

5D/12D/20D Double Station Blow Molding Machine Extrusion Line
5D/12D/20D Double Station Blow Molding Machine Performance and advantages
Suitable for the production of various specifications of 100ml~3000ml milk bottles, soy sauce pots, rice wine pots, 200ml~5000ml various shampoo, shower gel, detergent, and other cleaning products plastic bottles;
· Optional pearlescent layer co-extrusion system;
· According to product specifications, optional double die head, three die head, four die head, six die head;
· According to the raw material, JW-DB plate single-station hydraulic screen changing system can be selected;
· According to product specifications, optional double die head, three die head, four die head, six die head;
· According to customer requirements, add in-mold labeling machine, online burr removal, online burr conveying, online finished product conveying, online packing, etc.;
5D/12D/20D Double Station Blow Molding Machine Control system
SIEMENS human-machine interface
The human-machine interface control panel screen has such functions as follows:
visual display providing the best support to easily set, search, change and store the parameters.
the controlling system has self-diagnosis functions.
the malfunctions can be displayed on the screen.
It can ensure products’ weight and thickness perfectly.
Extrusion & Die head
The extruder uses a screw and barrel, which is a famous brand of Jinhailuo all over the world.
It has advantages such as high output, smoothness, plasticization, wearables, and long life.
The gearbox is the kind of product specially used for plastic extrusion.
JWELL supply stable & different kinds of single-layer /multi-layer continuous/accumulating type die head.
Fit for the customer’s special requirement for the different high molecular materials and the different number of layers.
Blowin system
Up-blowing unit(Used for JWZ-BM Continuous type Blow Molding Machine)
Bottom-blowing unit(Used for JWZ-BM Accumulating type Blow Molding Machine)
Output system
Take out the robot.
Scrapping collects together, conveys, crusher into one unit.

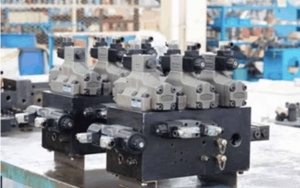

Hydraulic system
The hydraulic controlling system uses servo-controlled technology to control the movements of actuators, and all the elements used in the hydraulic system are famous brands, it has advantages as follows: quick response and high energy efficiency.

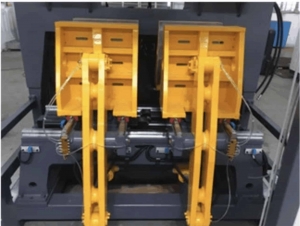

Open&Closing system
Common three platen and three tie bar construction
Toggle struction
Lubrication system
This auto-lubrication system can lubricate the system with a set cycle automatically.

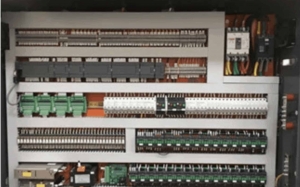

Electric system
- SIEMENS CPU unit
- SIEMENS temperature-control unit
- SIEMENS digital-output unit
- SIEMENS analog-output unit
- MITSUBISHI CPU unit
- JWELL invertor revolving speed-control
- Schneider electric components
5D/12D/20D Double Station Blow Molding Machine Main Technical Parameters
| Model | Unit | BM05D | BM12D | BM20D |
| Max product volume | L | 5 | 12 | 20 |
| Dry cycle | Pc/h | 700*2 | 600*2 | 600*2 |
| DIe head structure | Continuous type | |||
| Main screw diameter | mm | 75 | 90 | 90 |
| Max plasticizing capacity(PE) | kg/h | 90 | 160 | 160 |
| Driving motor | Kw | 30 | 45 | 45 |
| Oil pump motor power | Kw | 11 | 15 | 15 |
| Claming force | KN | 70 | 120 | 160 |
| Max space between platen | mm | 150-510 | 240-640 | 280-680 |
| Platen size W*H | mm | 350*400 | 450*500 | 500*520 |
| Max moild size | mm | 360*400 | 500*520 | 560*520 |
| Platen moving stroke | mm | 450/520 | 600/650 | 650 |
| Heating power of die head | Kw | 7.5 | 10 | 12.5 |
| Machine dimension L*W*H | m | 3.7*3.1*2.7 | 4.2*3.2*3.0 | 4.3*3.2*3.1 |
| Machine weight | T | 8.5 | 12 | 14 |
| Total power | Kw | 60 | 90 | 93 |
Note: the information listed above is for reference only, the production line can be designed by customer’s requirements.
FAQ
- International Commercial Terms(Incoterms): FOB, CFR, CIF, EXW
- Terms of Payment: LC, T/T
- Average Lead Time: Peak season lead time: 3-6 months, Off season lead time: 1-3 months
- Number of Foreign Trading Staff:>50 People
Yes, We own 5 manufacturing bases and sales center in Shanghai , Suzhou ,Changzhou, Zhou Shan, Dongguan China.
Jwell made the first Chinese screw and barrel in 1978 in brand name Jinhailuo.After more than 40 years development,
JWELL is one of the biggest extrusion machine supplier in China with 300design&test engineer, 3000 employees.
Jwell has become the premier supplier of extrusion lines and reliable business partners. Welcome to drop in us.
Our machines taking the European standards and follow the Germany type of business, we cooperation with
International famous brands Siemens Schneider Flender Omron ABB WEG Falk Fuji etc. Our company continuously
imports over 1000 international first-class high precision processing equipment such as multistage machining centers, CNC lathes and CNC milling machines from Korea, Japan etc. All our processes strictly adhere to CE certification,
IS09001 and 2008 quality management system . And we have 12 months quality warranty time. We testing the
machine performances before each delivery. Jwell service engineers will always be here for anything you needed.
Usually it takes about 1 – 4 months depends on different machinery upon receipt of order advance payment.
Once clear your requirements and determined extrusion line is ideal for you. We will send technical solutions and
Proforma Invoice to you. You can pay via TT bank transfer, LC as you like.
One. We provide both customized extrusion lines and technical solutions. Welcome contact with us for technical
innovation or improvements for your future purchasing plan.
We produce more than 2000 advanced extrusion lines every year world wide.
We can send the small spare parts by air express for urgent matter. And the complete production line by sea
to save the cost. You can either use your own assigned shipping agent or our cooperative forwarder. The nearest
port is China Shanghai, Ningbo port, which is convenient for maritime transportation..
Yes, we support our business partners by pre-after sale service. Jwell has more than 300 technical testing
engineers traveling world wide. Any cases would be responded with prompt solutions. We provide training, testing,
operation and maintenance service for a life time.
