Suzhou JWELL Machinery Co.,Ltd will show PVC Three layers co-extruder pipe line in H6.1D65 booth, looking forward to your visit

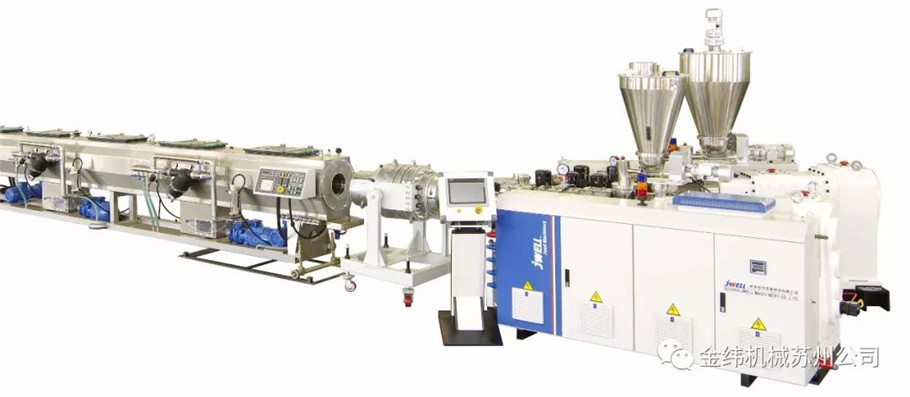

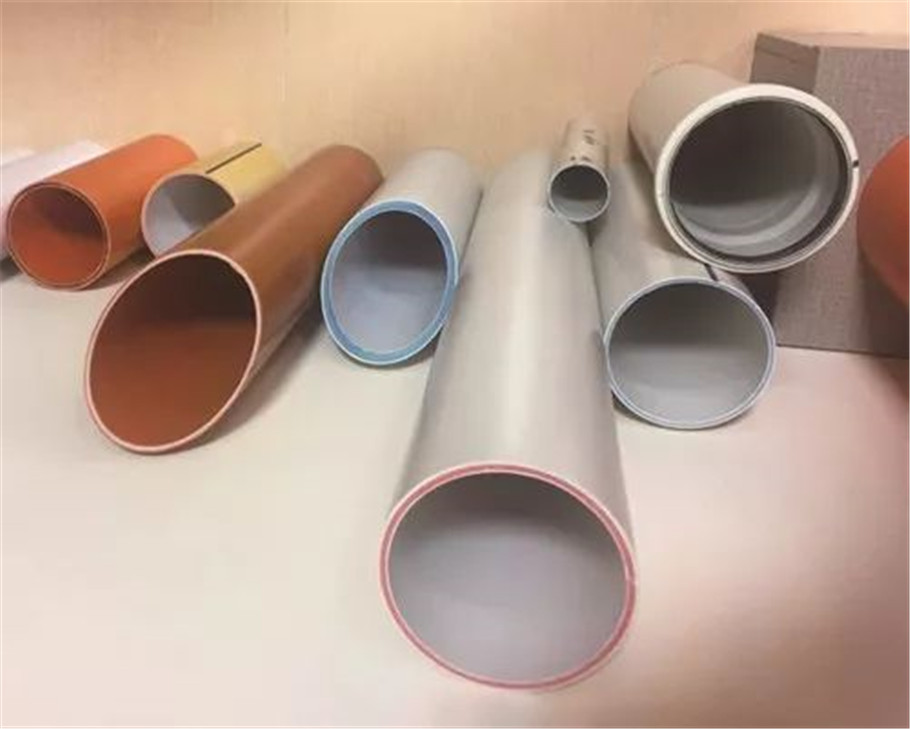

The line used two sets efficient SJZ conical extruders to make three layer PVC pipe. The middle layer used PVC+ high-calcium or PVC foaming material.

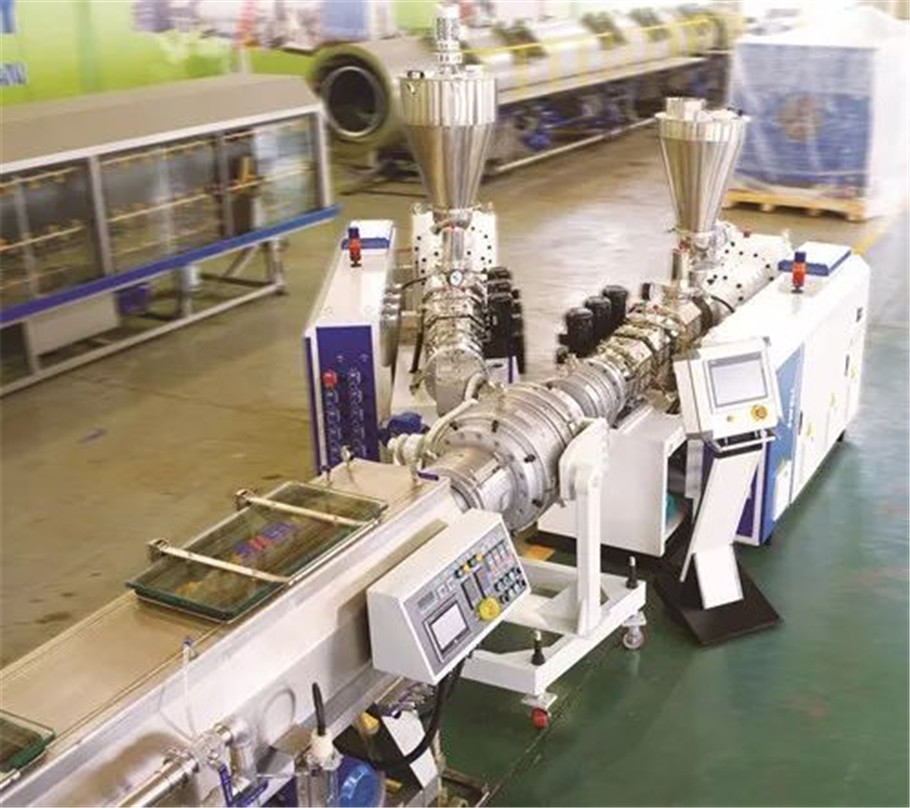

The extruder used JWELL Ultra-wear-resistant alloy screw and barrel; Used twin-screw feeder with feeding stability and anti-powder bridge. The vertical assembly gearbox optimizes the cooling scheme of the gearbox, and the overall temperature of the gearbox is even more
ptimized the design of PVC three-layer mould, with the appearance of insulation and anti-perm protection; The internal flow path is highly polished by chrome plating, wear resistant and corrosion resistant; It is convenient to remove and replace product specifications. With the special sleeve, the production speed is fast, and the surface quality is good.
Two-stage vacuum tank, independent frequency control, vacuum degree abnormal alarm; Multi-claws haul-off unit, servo drive motor, ensure the high traction force stable production, no indentation and no skidding.

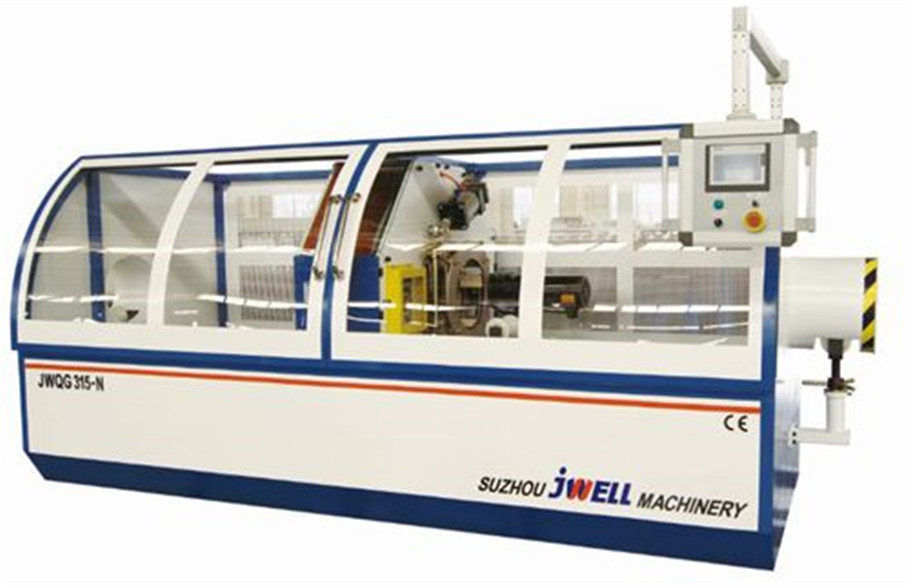

The cutting machine adopts rotary clamping device to adapt to different pipe diameters and avoid the trouble of frequent replacement of clamps. Equipped with a new adjustable float chamfering mechanism, it can adjust the chamfering size according to the size of pipe diameter and wall thickness. Closed suction device, effect is better.
Movable man-machine interactive console, complete line PLC centralized control, equipped with energy consumption display meter.
Tel：0512-5311818FAX：0512-53115858Suzhou JWELL Machinery Co.,Ltd
ADD:NO.18,Dong an Road,Chengxiang Industrial Zone,Taicang,Suzhou City, China
Post time: May-11-2018
