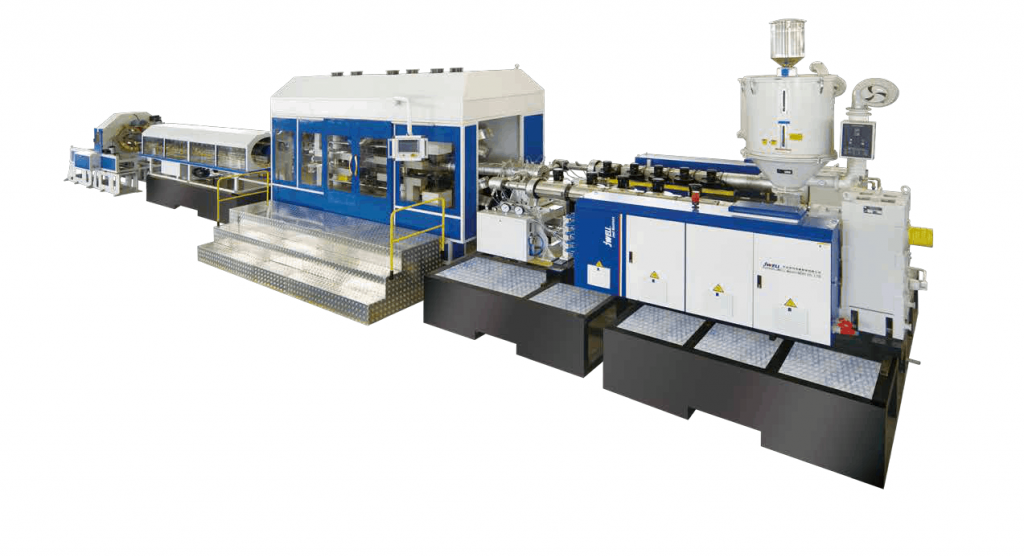

High-speed Single Screw Extruder PE/PP Double wall corrugated Pipe Production Line
Performance ＆ Advantages

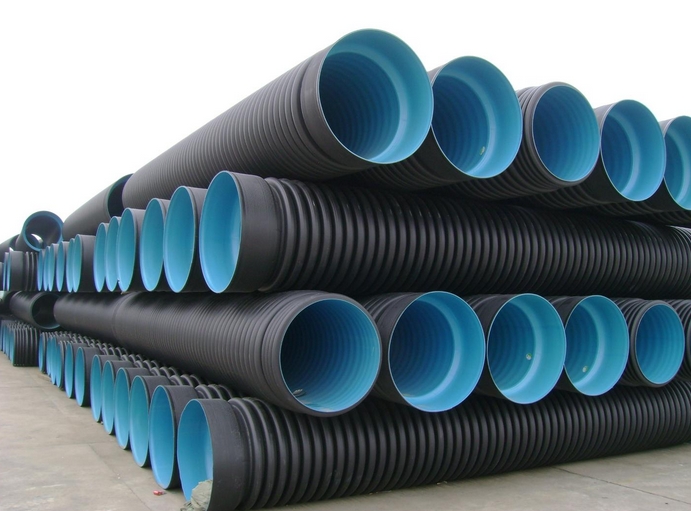

The corrugated pipe line is the 3rd generation of improved product of Suzhou Jwell. The output of the extruder and the production speed of the pipe are greatly increased by 20-40% compared with the previous product. Online belling can be achieved to ensure the performance of the formed corrugated pipe products. Adopts Siemens HMI system.

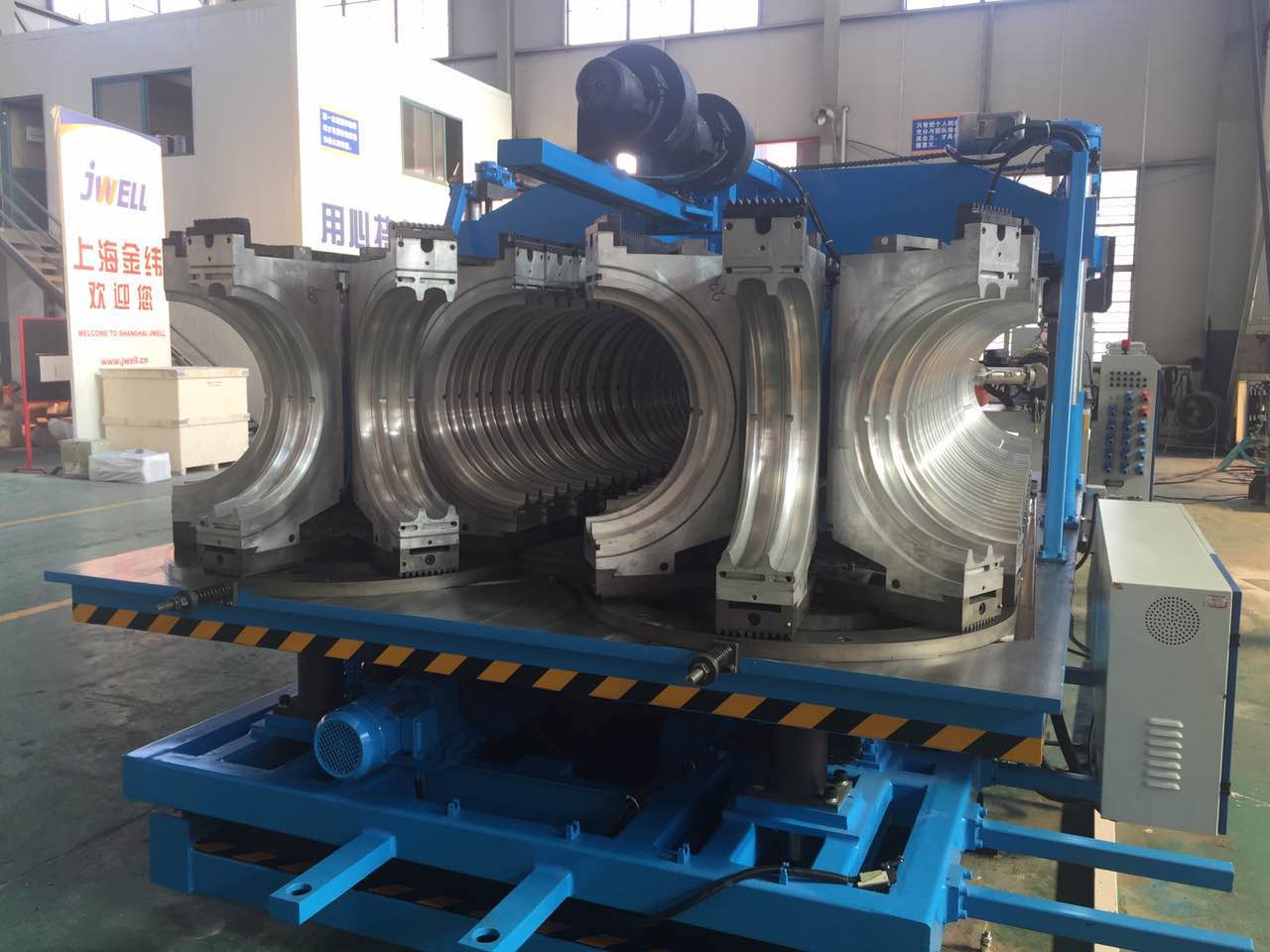

- The newly designed closed molding machine adopts a special high-efficiency cooling system for forming aluminum modules, which greatly improves the cooling efficiency in the production of corrugated pipe products;
- High-speed, high-output single-screw extrusion machine supporting a professional design of the corrugated pipe extrusion mould to achieve large-scale stable extrusion;
- Good interchangeability of the module; the aluminum forming module uses LY12 high-quality alloy aviation aluminum material with copper content ≥ 5%, precision pressure casting process, high density material, no light pores, long-term use is not easily deformed. Can customize various module waveform schemes according to the user’s requirements;
- Supporting automatic DWC cutter, computer control, accurate cutting position, stable running and easy to operate.
Main Technical Parameters
| Type | Pipe diameter(mm) | HDPE output（kg/h） | Max speed (m/min) | Total power (KW) |
|---|---|---|---|---|
| JWSBL-300 | 110-300 | 500 | 5 | 440 |
| JWSBL-600 | 200-600 | 800 | 5 | 500 |
| JWSBL-800 | 200-800 | 1000 | 3 | 680 |
| JWSBL-1000 | 200-1000 | 1200 | 2.5 | 710 |
| JWSBL-1200 | 800-1200 | 1400 | 1.5 | 800 |

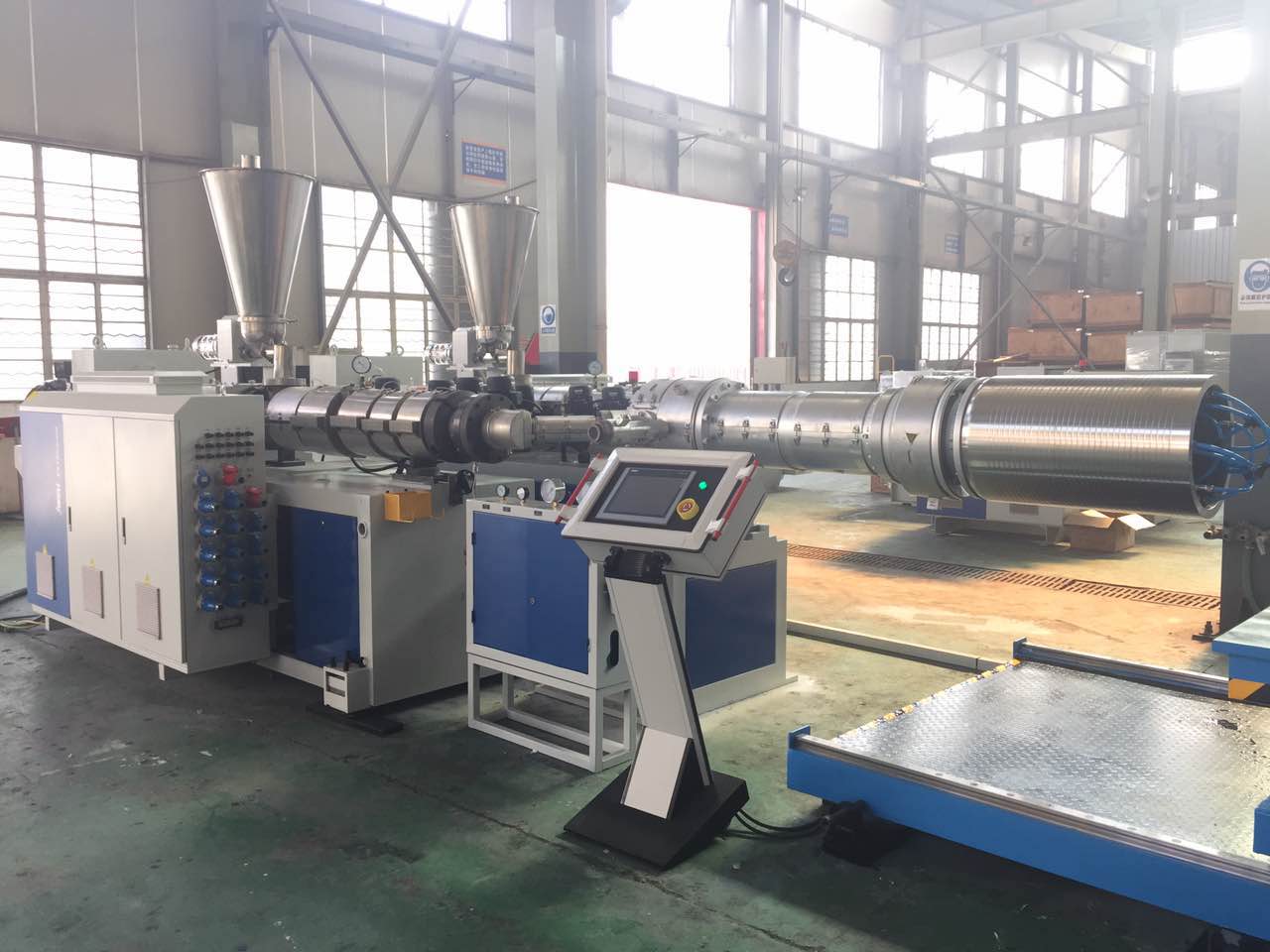

Conical Twin-screw Extruder FRPP/PVC Double wall Corrugated Pipe Production Line
Performance ＆ Advantages
In order to meet the market, Suzhou Jwell based on years of experience, independent research and develop of conical twin-screw extruder series FRPP / PVC DWC pipe line, has the following characteristics:
- The overall energy consumption of the production line is low, the conveyor efficiency of the conical twin-screw extruder is higher than that of the single screw extruder, and the installed power is less than the single screw extruder;
- The powder material can be extrusion directly, use raw material + calcium powder formula, reduce the cost, and improve the pipe ring stiffness;
- The extruder has a vacuum device to overcome the problem of air bubbles inside and outside the pipe due to the moisture content in the raw material.
Main Technical Parameters
| Type | Pipe diameter (mm) | PVC output (kg/h) | FRPP output (kg/h) | Max speed (m/min) |
|---|---|---|---|---|
| JWSBL-600 | 200-600 | 800 | 800 | 3 |
| JWSBL-300 | 110-300 | 450 | 400 | 4 |
| JWSBL-800 | 200-800 | 1200 | 1000 | 3 |
| JWSBL-1000 | 200-1000 | 1300 | 1200 | 2.5 |
| JWSBL-1200 | 800-1200 | 1400 | 1400 | 1.5 |
Parallel Twin-screw Extruder HDPE/PP Double wall corrugated Pipe Production Line
Performance ＆ Advantages
Suzhou Jwell introduced European advanced technology and newly developed parallel-parallel twin-screw extruder HDPE/PP DWC pipe line, which has the following characteristics:
- Adopt two parallel twin-screw extruders, and the mixing effect is excellent. It is possible to use both powdered and granular raw materials at the same time without the need for granulation and low raw material costs;
- The extruder is equipped with a side feeding system, which can adjust the calcium powder filling ratio at any time online, and the formula exchange is convenient;
- The extruder has vacuum vents. To make the inner and outer walls of the pipe dense and smooth without bubbles;
- The screw & barrel are building block types. maintenance and replacement easily.
Main Technical Parameters
| Type | Pipe diameter (mm) | HDPE output (kg/h) | Max speed (m/min) | Total power (KW) |
|---|---|---|---|---|
| JWSBL-600 | 200-600 | 800 | 5 | 500 |
| JWSBL-1000 | 200-1000 | 1200 | 2.5 | 710 |
| JWSBL-1200 | 800-1200 | 1400 | 1.5 | 800 |

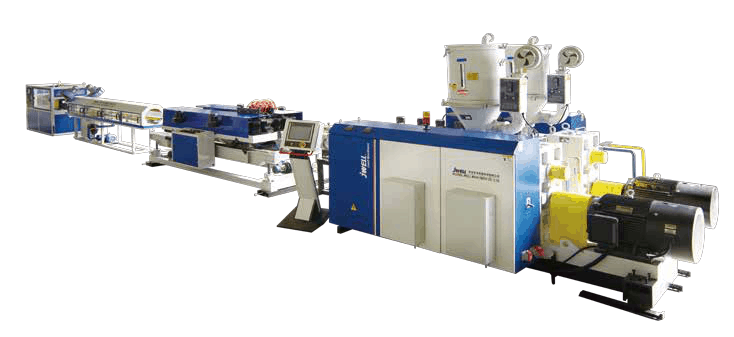

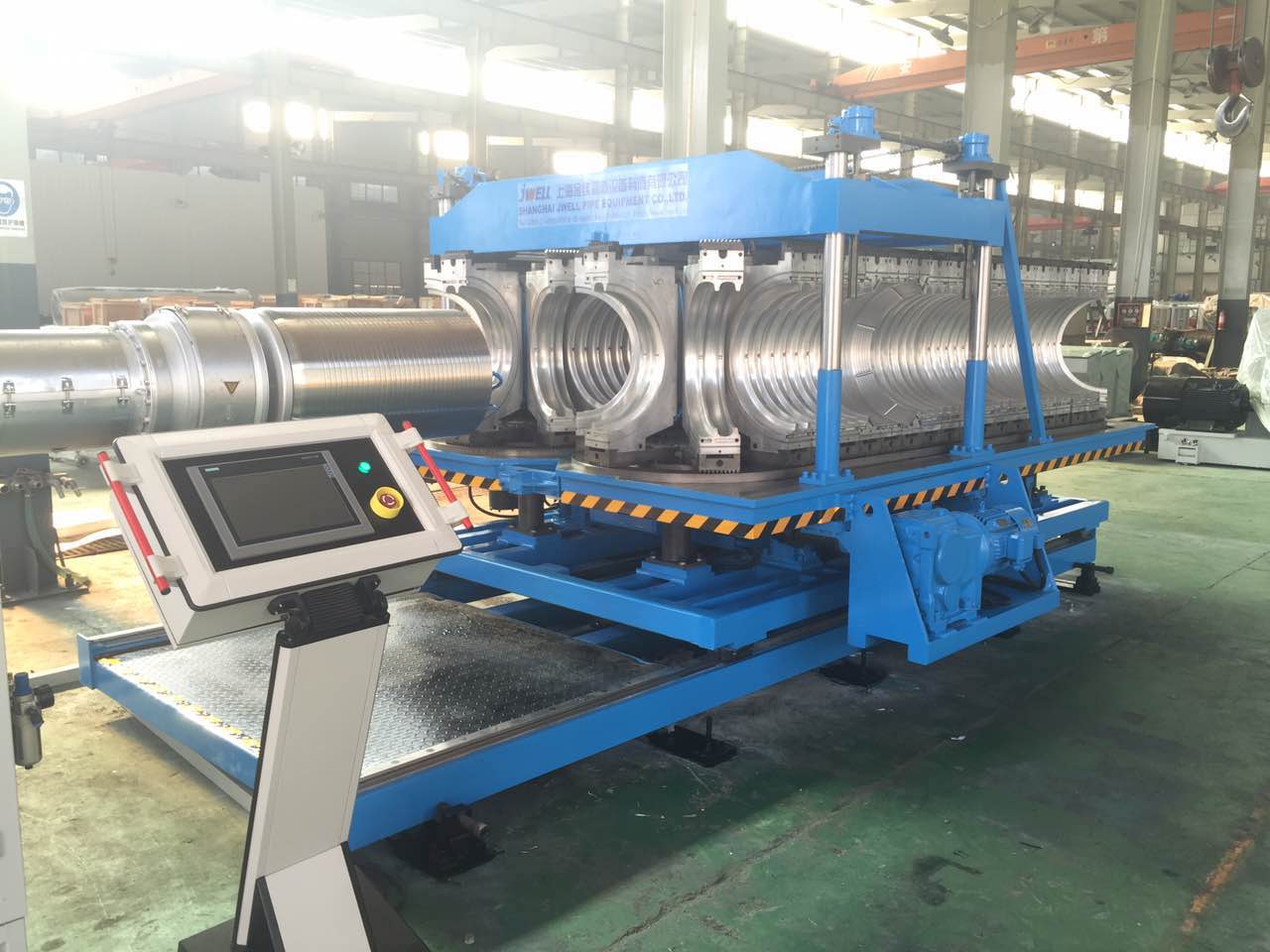

Horizontal Double wall corrugated Pipe Production Line
Performance ＆ Advantages
This series of horizontal DWC pipe line is suitable for the extrusion 50-250mm small-diameter DWC pipe. The products are widely used in many fields such as drainage, exhaust, and power. The entire line adopts computer HMI control, has a high degree of self-control, has a number of patented technology, stable operation and high output.
With the new high-efficiency single-screw extruder, the output is greatly plasticized and the pipe products have high flexibility. The molding machine adopts a horizontal structure and is easy to operate.
Main Technical Parameters
| Type | Extruder | Main Motor(kw) | Line Speed(m/min) |
|---|---|---|---|
| JWSBW-50-110 | 45/33+45/33 | 30+18.5 | 0.6-6 |
| JWSBW-50-160 | 65/33+65/33 | 45+30 | 0.5-5 |
| JWSBW-110-250 | 75/33+65/33 | 90+45 | 0.4-4 |
