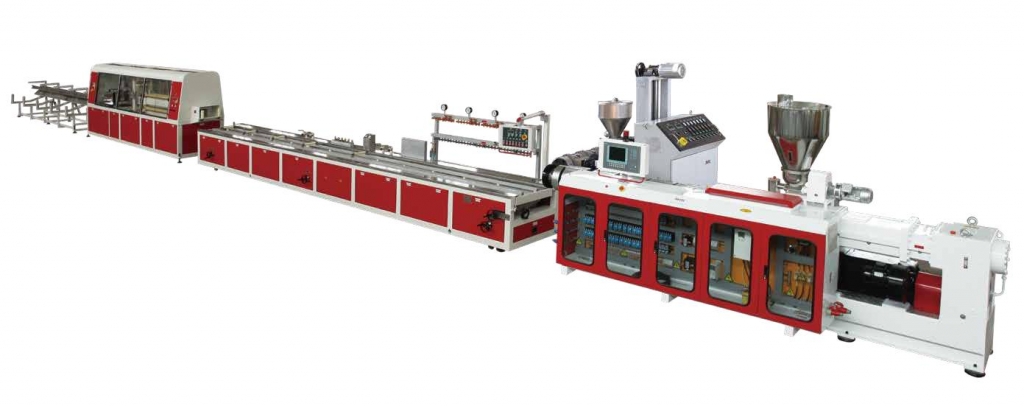

The PVC profile production line is composed of a vacuum setting table, a conical twin-screw extruder, a cutting and laminating machine, a tractor, and a turning material. Different specifications of the conical twin-screw extruder can be selected according to different profiles and molds.

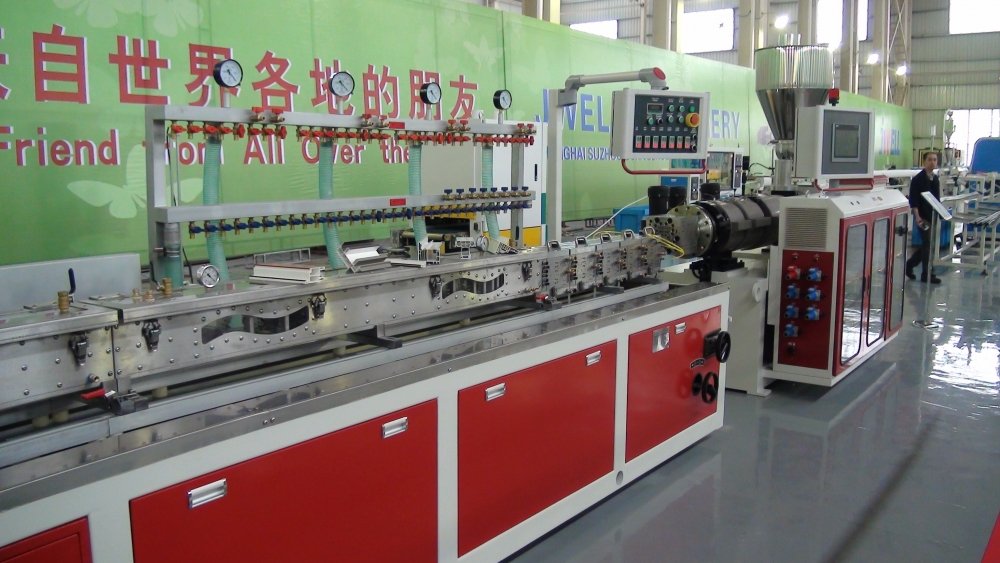

Vacuum sizing table: It adopts a special enlarged vortex flow cooling system to facilitate cooling and shaping. According to different molds and sizing tables, 4 meters, 6 meters, 8 meters, 10 meters and other specifications can be selected to meet the requirements of high-speed extrusion.

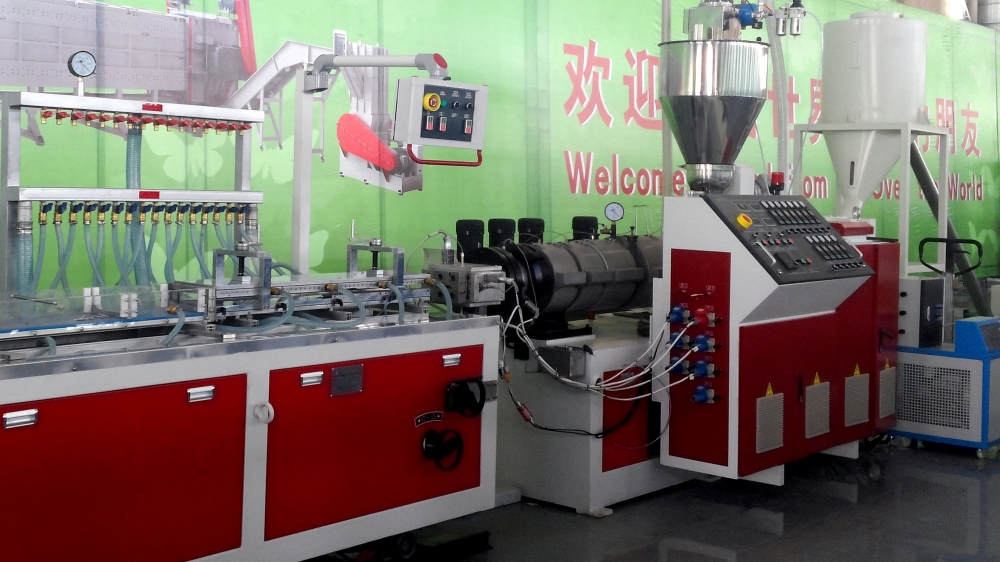

Extruder: The screw design is adopted to make the polymer micro-foaming plasticized evenly and the output is high. Imported high-quality frequency converters with stable rotation speed are used to ensure the main machine’s and auxiliary machines’ synchronous operation.
Tractor: Adopt lifting technology, stable work, good reliability and large traction.

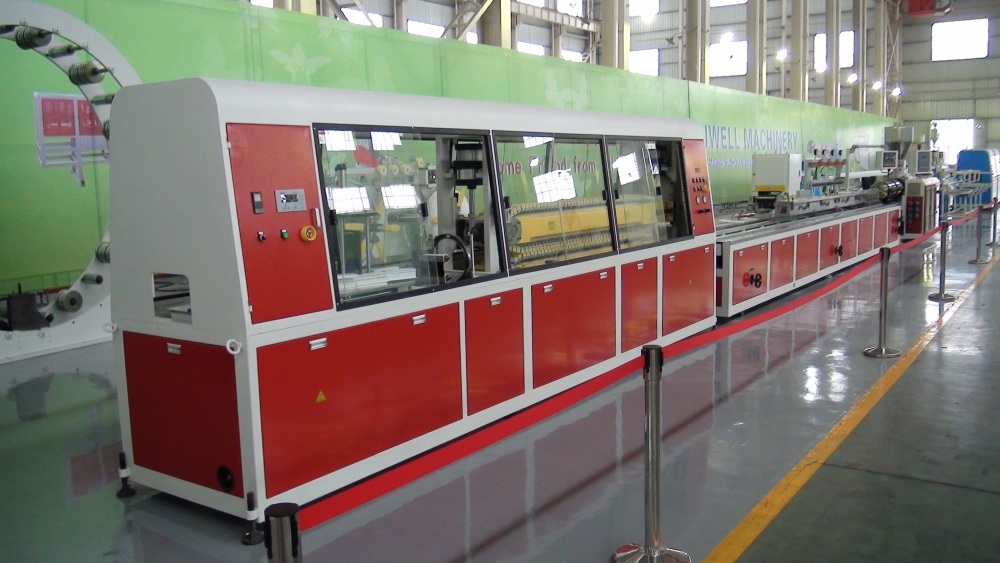

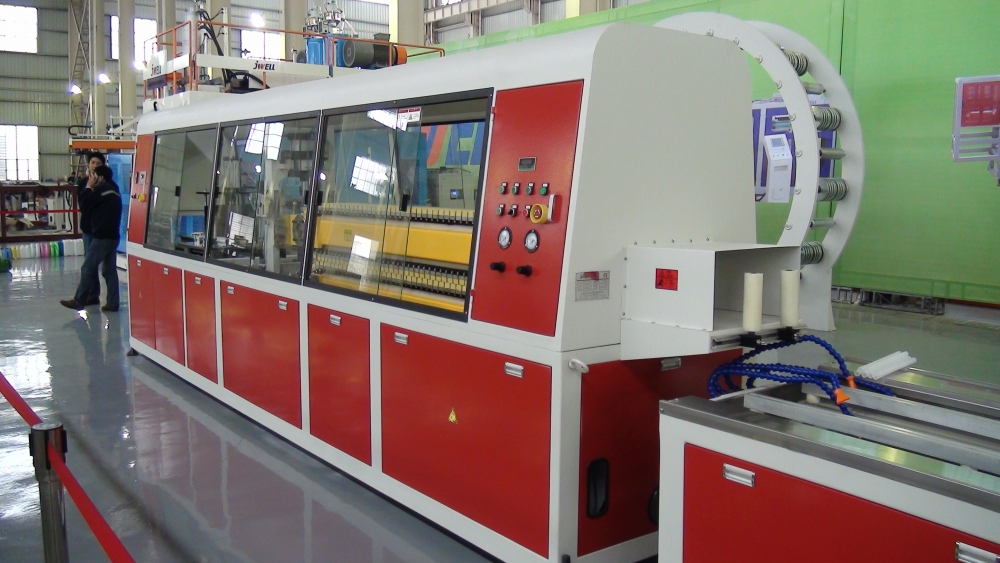

Cutting machine: The moving speed is synchronized with the tractor, the design is reasonable, the operation is stable, it can be automatically cut to length, and it is equipped with a dust recovery device.
Classic Type and High Speed PVC Profile Extrusion Line
PVC profile production line Application
The PVC profile extrusion lines equipped with conical twin screw extruder or parallel are used for PVC plastic window profiles, Steel-plastic composite profiles, decorative profiles, etc.
PVC profile production line Properties and advantages
This line features stable plasticity, high output, low sheering force, long life service, and other advantages.

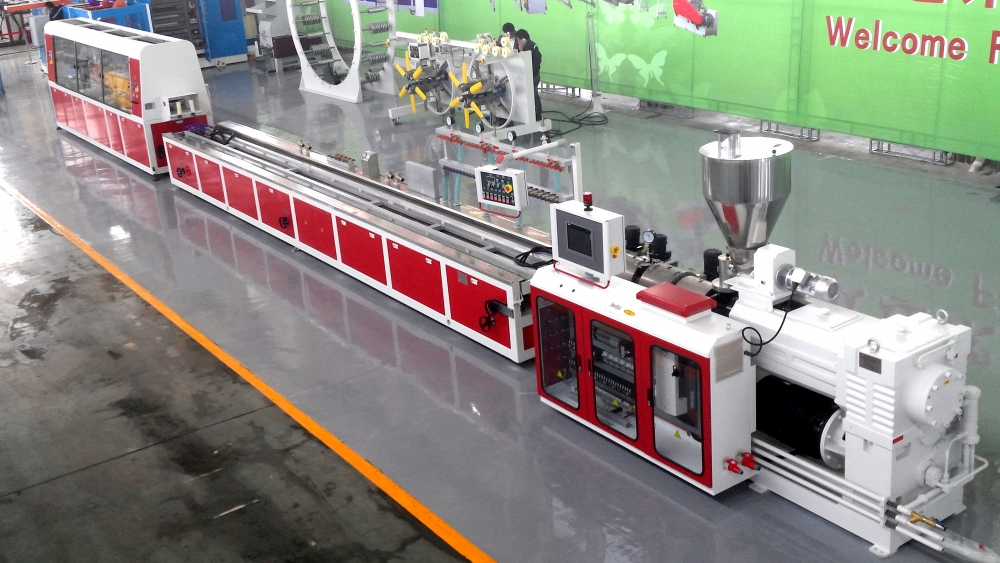

The PVC profile production line consists of the control system, conical twin-screw extruder, calibration unit, haul-off unit, cutter, film covering machine and stacker.
The extruder is equipped with an advanced AC inverter, and an imported temperature controller (RKC, Japan).
The calibration unit’s vacuum pumps and haul-off unit’s motors are famous brand products.
After a simple changing of the die and screw, it also can produce foam profiles.
Classic type main technical parameter
| Type | YF108 | YF240 | YF240A | YF300 | YF400 |
| Max.width of product (mm) | 108 | 240 | 150*2 | 300 | 400 |
| Extruder model | SJZ55/110 | SJZ65/132 | SJZ65/132 | SJZ65/132 | SJZ80/156 |
| Max.extrusion capacity (kg/h) | 110 | 180 | 180 | 180 | 320 |
| Extruder power (kw) | 22 | 37 | 37 | 37 | 55 |
| Cooling water (m3/h) | 7 | 8 | 8 | 8 | 10 |
| Compressed air (m3/min) | 0.6 | 0.6 | 0.8 | 0.6 | 0.6 |
High speed main technical parameter
| Type | YF240 | YF240 | YF240A |
| Max.width of product (mm) | 240 | 240 | 150*2 |
| Extruder model | SJP75/28 | SJP93/30 | SJP110/28 |
| Max.extrusion capacity (kg/h) | 150-250 | 250-400 | 400-500 |
| Extruder power (kw) | 45 | 55 | 90 |
| Cooling water (m3/h) | 7 | 8 | 10 |
| Compressed air (m3/min) | 0.6 | 0.6 | 0.8 |
PVC profile production line Video
FAQ
- International Commercial Terms(Incoterms): FOB, CFR, CIF, EXW
- Terms of Payment: LC, T/T
- Average Lead Time: Peak season lead time: 3-6 months, Off season lead time: 1-3 months
- Number of Foreign Trading Staff:>50 People
Yes, We own 5 manufacturing bases and sales center in Shanghai , Suzhou ,Changzhou, Zhou Shan, Dongguan China.
Jwell made the first Chinese screw and barrel in 1978 in brand name Jinhailuo.After more than 40 years development,
JWELL is one of the biggest extrusion machine supplier in China with 300design&test engineer, 3000 employees.
Jwell has become the premier supplier of extrusion lines and reliable business partners. Welcome to drop in us.
Our machines taking the European standards and follow the Germany type of business, we cooperation with
International famous brands Siemens Schneider Flender Omron ABB WEG Falk Fuji etc. Our company continuously
imports over 1000 international first-class high precision processing equipment such as multistage machining centers, CNC lathes and CNC milling machines from Korea, Japan etc. All our processes strictly adhere to CE certification,
IS09001 and 2008 quality management system . And we have 12 months quality warranty time. We testing the
machine performances before each delivery. Jwell service engineers will always be here for anything you needed.
Usually it takes about 1 – 4 months depends on different machinery upon receipt of order advance payment.
Once clear your requirements and determined extrusion line is ideal for you. We will send technical solutions and
Proforma Invoice to you. You can pay via TT bank transfer, LC as you like.
One. We provide both customized extrusion lines and technical solutions. Welcome contact with us for technical
innovation or improvements for your future purchasing plan.
We produce more than 2000 advanced extrusion lines every year world wide.
We can send the small spare parts by air express for urgent matter. And the complete production line by sea
to save the cost. You can either use your own assigned shipping agent or our cooperative forwarder. The nearest
port is China Shanghai, Ningbo port, which is convenient for maritime transportation..
Yes, we support our business partners by pre-after sale service. Jwell has more than 300 technical testing
engineers traveling world wide. Any cases would be responded with prompt solutions. We provide training, testing,
operation and maintenance service for a life time.
